Штуцер AGN
Завантажити в PDF

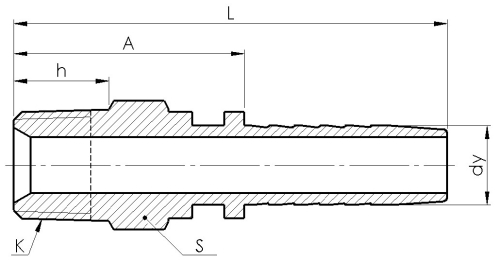

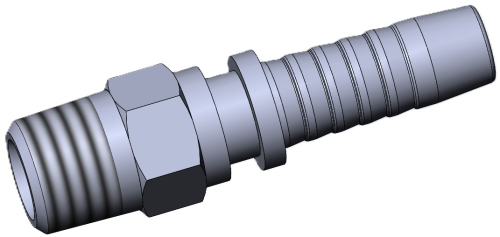

Штуцер AGN
Адаптер типу AGR
| НАЙМЕНУВАННЯ | Умовний прохід | РОЗМІРИ | Маса | ||||
| dy | Hose | M | S | A | L | ||
| мм. | Inch | мм. | мм. | мм. | мм. | кг. | |
| AGN-06 1/8" | 06 | 1/4" | 1/8"-27 NPT | 12 | |||
| AGN-06 1/4" | 06 | 1/4" | 1/4"-18 NPT | 14 | |||
| AGN-06 3/8" | 06 | 1/4" | 3/8"-18 NPT | 19 | |||
| AGN-08 1/4" | 08 | 5/16" | 1/4"-18 NPT | 14 | |||
| AGN-08 3/8" | 08 | 5/16" | 3/8"-18 NPT | 19 | |||
| AGN-10 1/4" | 10 | 3/8" | 1/4"-18 NPT | 17 | |||
| AGN-10 3/8" | 10 | 3/8" | 3/8"-18 NPT | 19 | |||
| AGN-10 1/2" | 10 | 3/8" | 1/2"-14 NPT | 22 | |||
| AGN-12 3/8" | 12 | 1/2" | 3/8"-18 NPT | 19 | |||
| AGN-12 1/2" | 12 | 1/2" | 1/2"-14 NPT | 22 | |||
| AGN-12 3/4" | 12 | 1/2" | 3/4"-14 NPT | 27 | |||
| AGN-16 1/2" | 16 | 5/8" | 1/2"-14 NPT | 24 | |||
| AGN-16 3/4" | 16 | 5/8" | 3/4"-14 NPT | 27 | |||
| AGN-20 1/2" | 20 | 3/4" | 1/2"-14 NPT | 27 | |||
| AGN-20 3/4" | 20 | 3/4" | 3/4"-14 NPT | 27 | |||
| AGN-20 1" | 20 | 3/4" | 1"-11,5 NPT | 36 | |||
| AGN-25 3/4" | 25 | 1" | 3/4"-14 NPT | 36 | |||
| AGN-25 1" | 25 | 1" | 1"-11,5 NPT | 36 | |||
| AGN-25 1.1/4" | 25 | 1" | 1.1/4"-11,5 NPT | 46 | |||
